BDC 250
CAFRAMO Lab Solutions

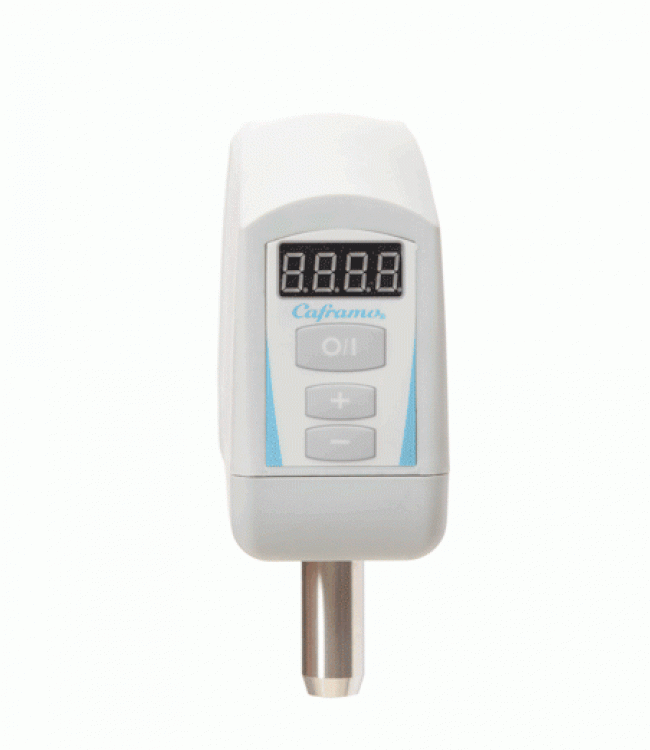

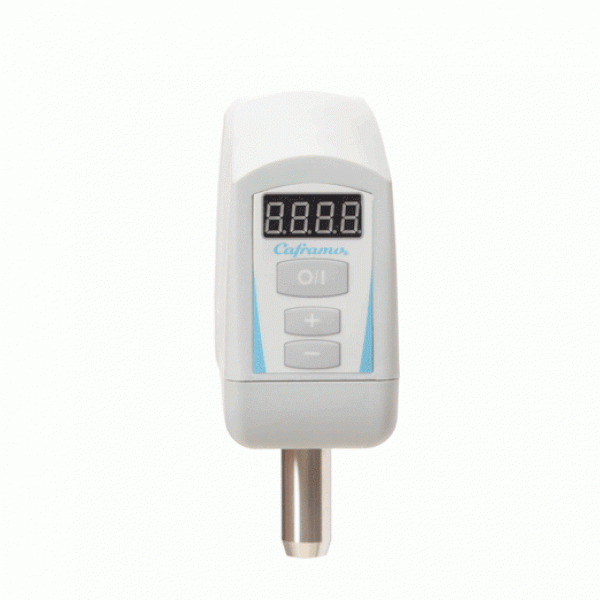

Petite -Model BDC250
| Speed | 50-2500 rpm |
| Volume Maximum | 2 L (0.5 US Gallon) |
| Viscosity Maximum | Water-like |
| Torque Maximum | 10 Ncm (0.9 in-lbs = 14 in-oz) |
| Output Power | 7 Watts (1/100 hp) |
| Speed Display | Yes |
| Speed Accuracy | ± 10 rpm or ± 3% of reading |
| Torque Display | No |
| Zero Torque | No |
| Timer | No |
| Through Shaft | No |
| Collet Shaft Diameter | 6 mm (0.24 in) |
| Chuck Guard | No |
| Rotation Direction | Clockwise only |
| Auto Start | Yes |
| Housing | Chemical-resistant nylon |
| Weight | Power Supply: 0.105 kg (0.23 lb), Stirrer: 0.367 kg (0.81 lb) |
| IP Rating | IP42 |
| Voltage | 100-240 volt must use Caframo power supply |
| Frequency | 50/60 Hz |
| Ambient Temperature Operation | 5-40 °C (41-104 °F) |
| Relative Humidity Operation | 80 % |
| Stand Rod | 500 mm (19 11⁄₁₆ in) |
| Impeller Shaft Dimensions | 188 x 6.0 mm (7 ⅜ x 0.24 in) |
| Radial and Axial Blades Dimensions | 13 x 30 mm (½ x 1 3⁄₁₆ in) |
| Blade Rotation | Left hand |
| Approvals | Independently tested and conforms to Canada and US standards. Power supply is CE marked and certified. |
| Warranty | 3 years |
