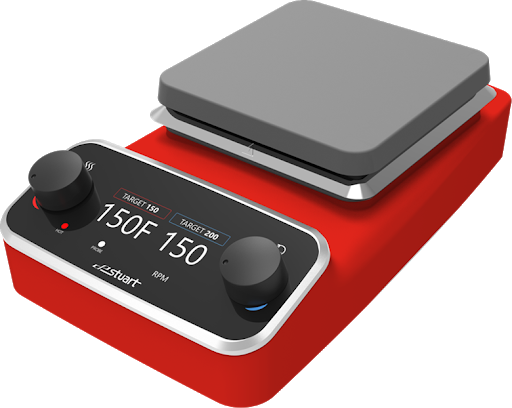

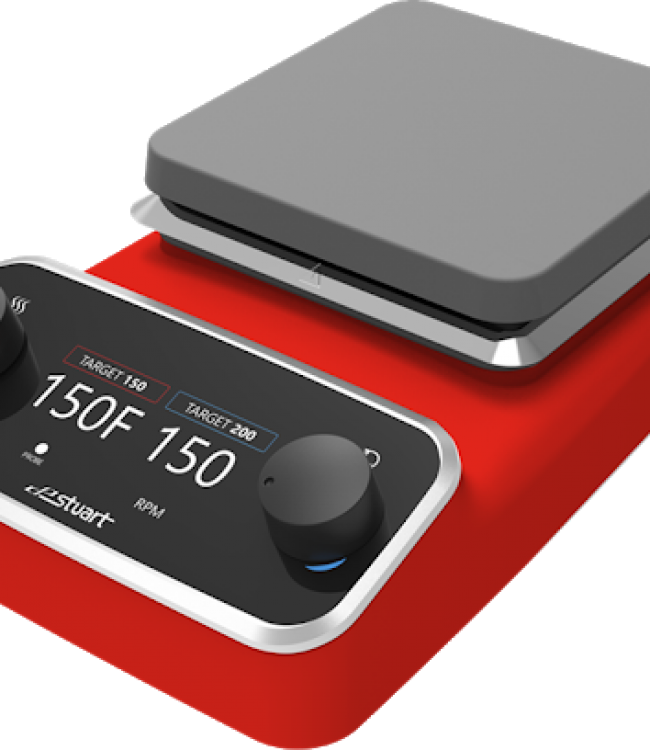

Isıtıcılı Manyetik Karıştırıcı | Stuart Dijital Seri
Technical Specification
| CD150_ | SD150_ | |
|---|---|---|
| Plate material | Glass ceramic | Aluminium silicon alloy |
| Plate dimensions, mm | 150 x 150 | 150 x 150 |
| Heated area, mm | 120 x 120 | 150 x 150 |
| Heater power, W | 500 | 700 |
| Display resolution °C | 1 | 1 |
| Max. plate temp. °C | 450 | 300 |
| Connection for Ext. temperature sensor | SCT1 Contact thermometer | SCT1 Contact thermometer |
| Control accuracy with probe °C | ± 1°C | ± 1°C |
| Hot warning light | Mains Independent | Mains Independent |
| Programmable | No | No |
| Available colours | Blue, White, Black | Blue, White, Black |
| Net weight, kg | 2.5 kg | 2.5 kg |
| Overall dimensions (w x d x h) | 180 x 300 x 93 | 180 x 300 x 93 |
| Electrical supply | 115V or 230V, 5060Hz | 115V or 230V, 5060Hz |
Ordering Information
| Model | Description |
| SD150B | Small Metal Hotplate, Digital, Blue |
| SD150W | Small Metal Hotplate, Digital, White |
| SD150K | Small Metal Hotplate, Digital, Black |
| CD150B | Small Ceramic Hotplate, Digital, Blue |
| CD150W | Small Ceramic Hotplate, Digital, White |
| CD150K | Small Ceramic Hotplate, Digital, Black |
