SpectraAlyzer DAIRY/Süt ürünleri analizleri için

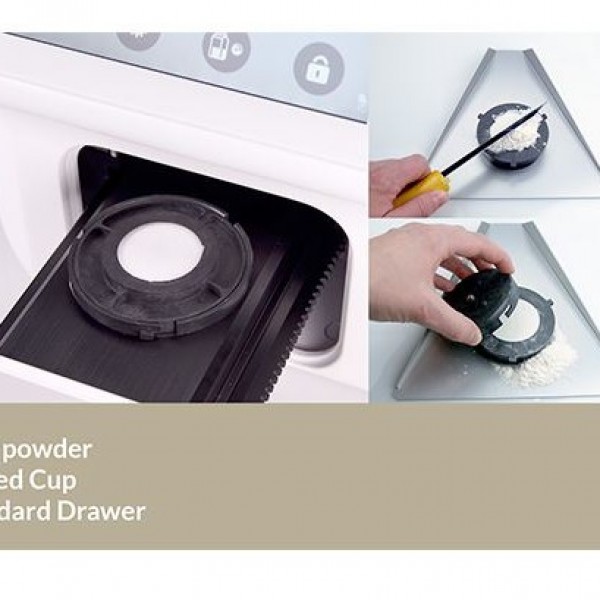

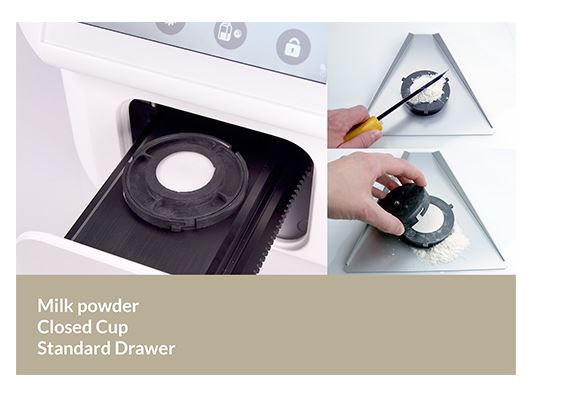

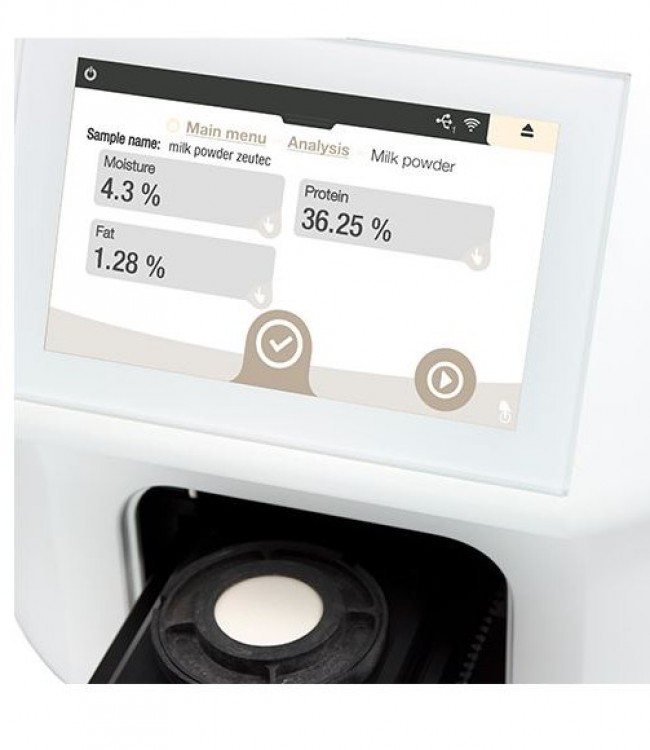

SpectraAlyzer analytical solutions for Milk powder analysis

Optimization of processing tolerances during the production of skim milk powder

Maximize profit by increasing water content in milk powder, decreasing labour costs and improving product quality


Production Plant 250 d/a
Production Plant 20 h/d
Milk Powder production 2000 kg/h
Total Production 10000 t/a

Product specifications

Water content 3,7 %
Permitted Water content 4,0 %
Safety difference 0,3 %

The monitoring of the water content in skim milk powder with NIR technology allows the continuous production of skim milk powder with a water content of for example 3,9 % instead of 3,7 %.

Savings in production costs per year: raw material and wages


Production cost reduction per year:

  • 20 t skim milk powder will be saved per year

Skim milk powder savings / year – € 40.000

  • Less routine production analysis is necessary
  • Cost for reduced labour to be quantified

Technical data

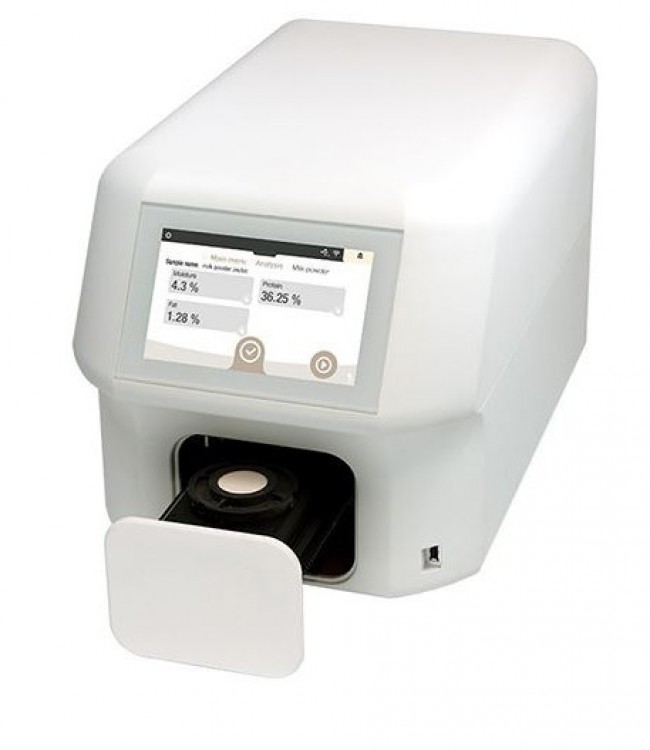

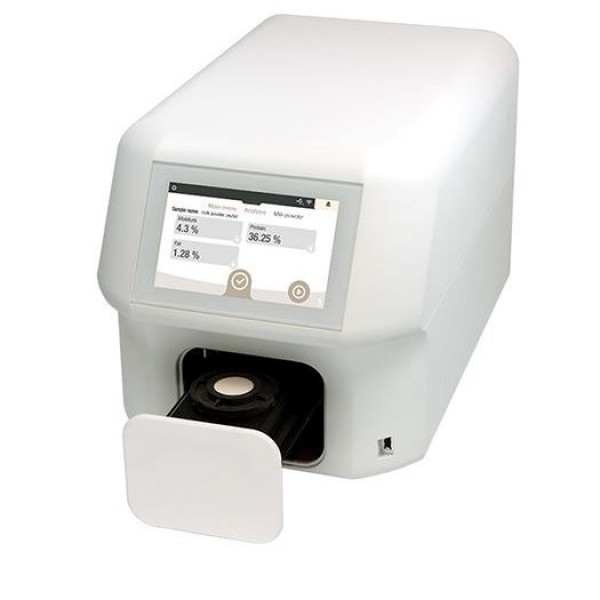

SpectraAlyzer DAIRY 110-A100-17


For dairy products
Spectral range 800 – 2400 nm
Dual beam system, Sample / Reference measurement
High signal to noise ratio > 150.000:1
Large expandable internal memory for calibrations, methods and history results

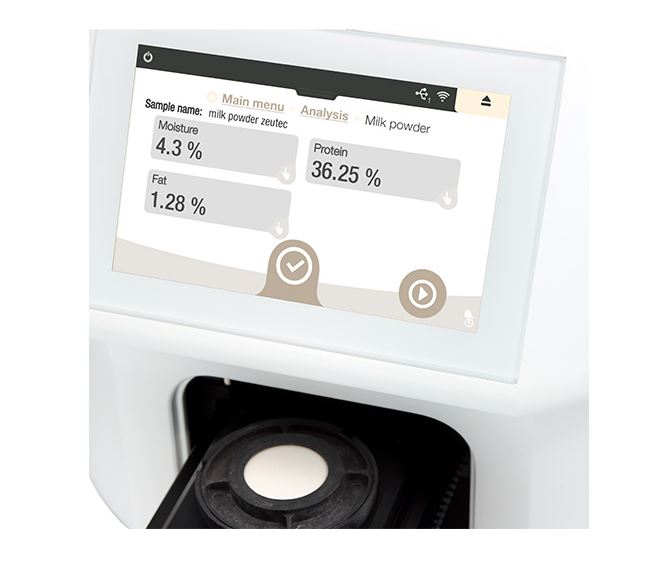

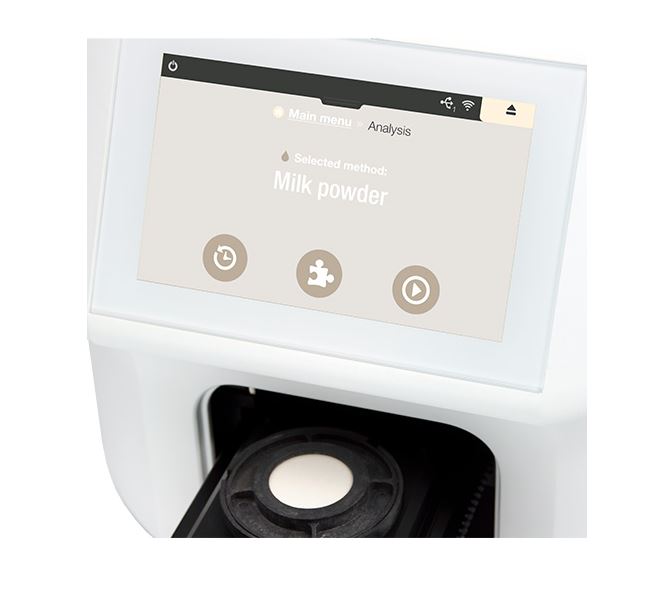

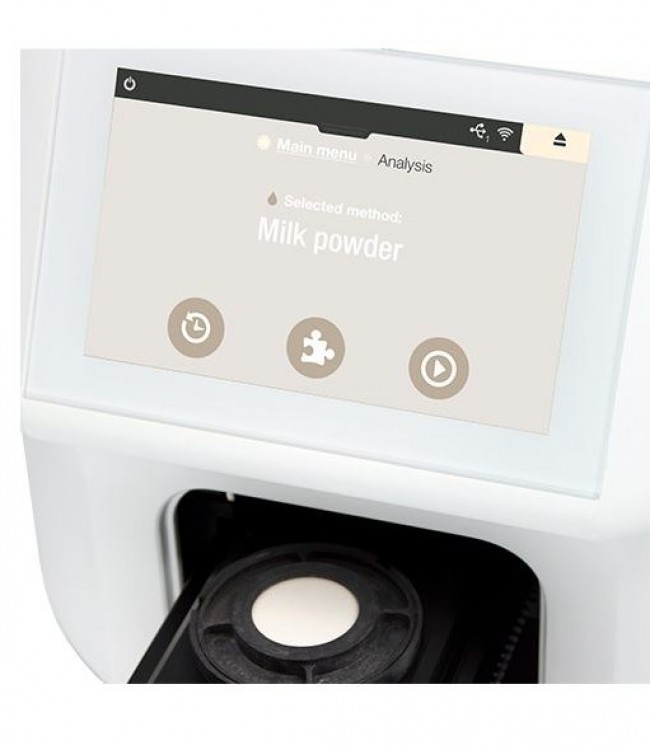

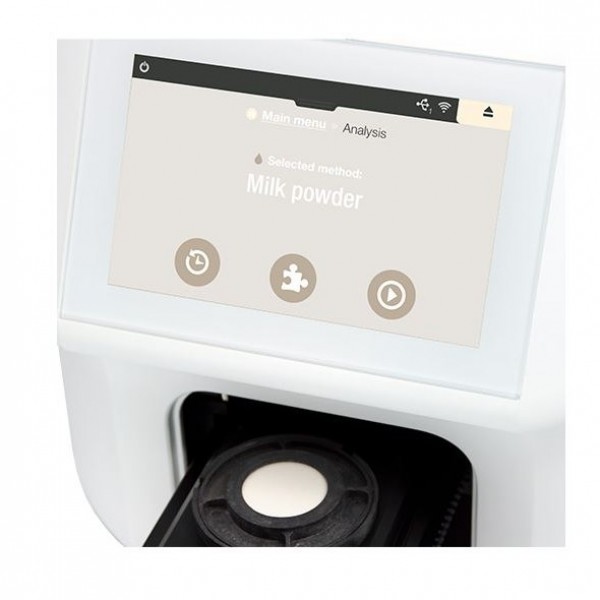

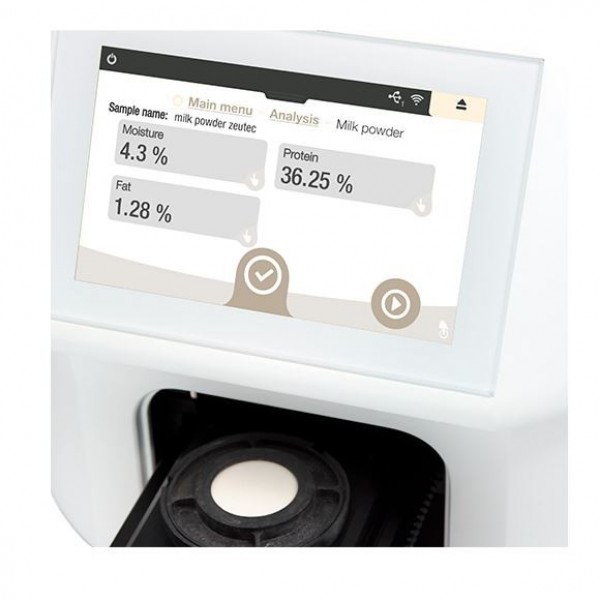

Graphical user interface, projected capacitive glass touch panel


Standard calibrations Included
Keyboard As optional accessory
Barcode reader As optional accessory
Printer Thermal ticket or office type printer as optional accessory
AWX Application worx, chemometric software package


Screen TFT 800 x 480 pixel
Power requirements min. 90 V AC (50 – 60 Hz), max. 260 V AC (50 – 60 Hz), 220VA
Operating temperature 5 °C – 40 °C non-condensing
Interfaces 1 x front USB 2.0, 3 x USB 2.0, 2 x RS232, Ethernet, Audio out
Dimensions Height: 310 mm / Width: 300 mm / Depth: 480 mm
Weight 17 kg
