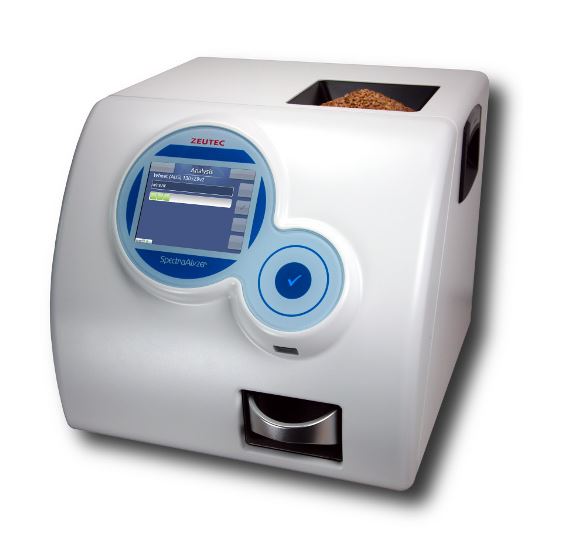

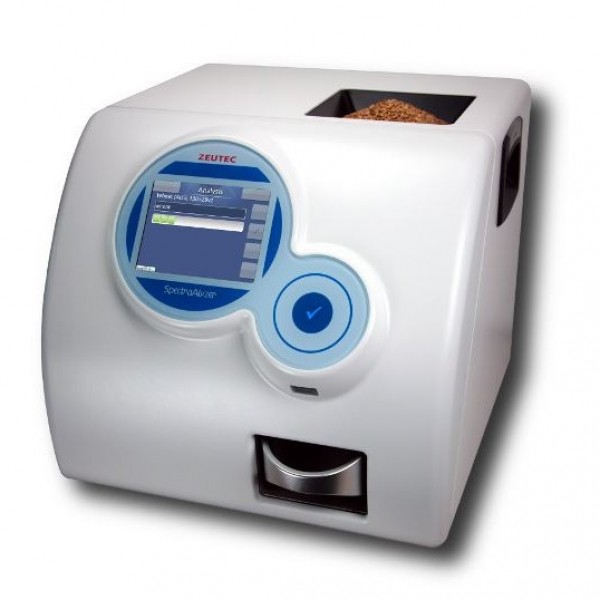

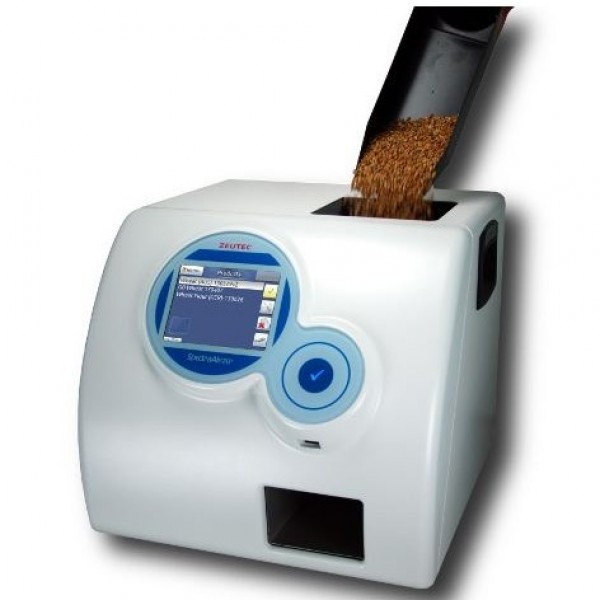

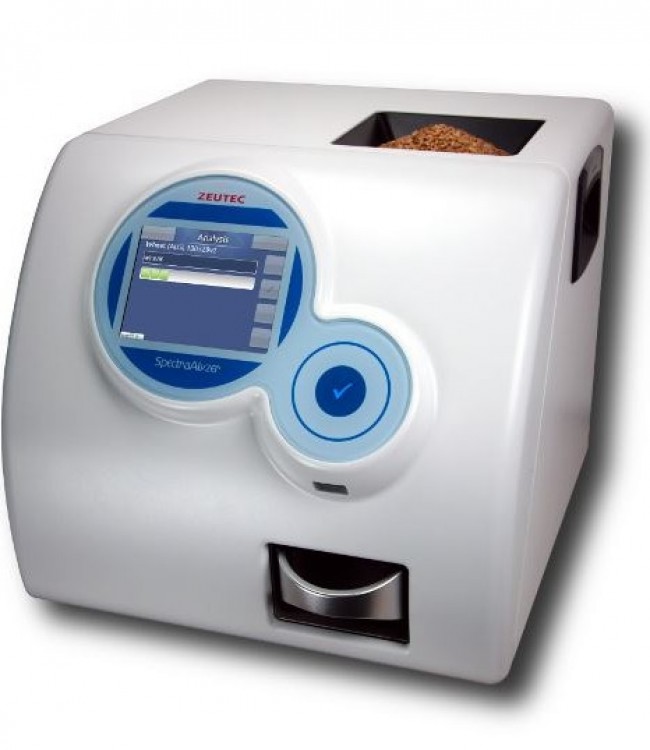

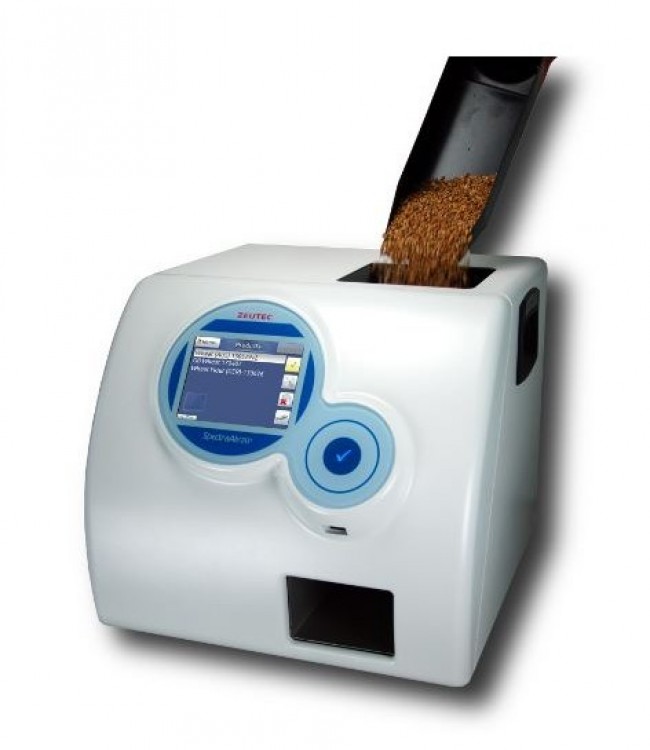

SpectraAlyzer GRAIN/Tahıl analizleri için

Technical data

SpectraAlyzer GRAIN


Design NIR Monochromator
Spectral range (570) 850 – 1100 nm
Verification of wavelength Automatically during start-up
Optical bandwidth 4 nm
No of datapoints 1000
Measurement Transmisson
Sample presentation Automatic
Optical path length Automatically adjusted, range 6 – 30 mm
Measuring time 45 s, 200 – 300 g sample



Screen TFT 640 x 480 pixel, colour
User Interface Glass, COS “Central Operation Slider”, multi-language GUI


Software Integrated, stand-alone operation, fail-safe
Software / database storage Compact flash disk 4 GB
Interfaces RS232, USB, Ethernet
Printer Printer as optional accessory
Input voltage / rated current 90 – 260 V, self-detecting / 200 VA
Protection Dust and humidity


Dimensions Height: 370 mm / width: 400 mm / depth: 440 mm
Weight 27 kg


Flour module For flour, semolina, soy meal and other ground samples
Test Weight Module For determination of volume to weight ratio of the sample


Bluetooth, WLAN, Application worx, wavelength standard, barcode reader, keyboard
