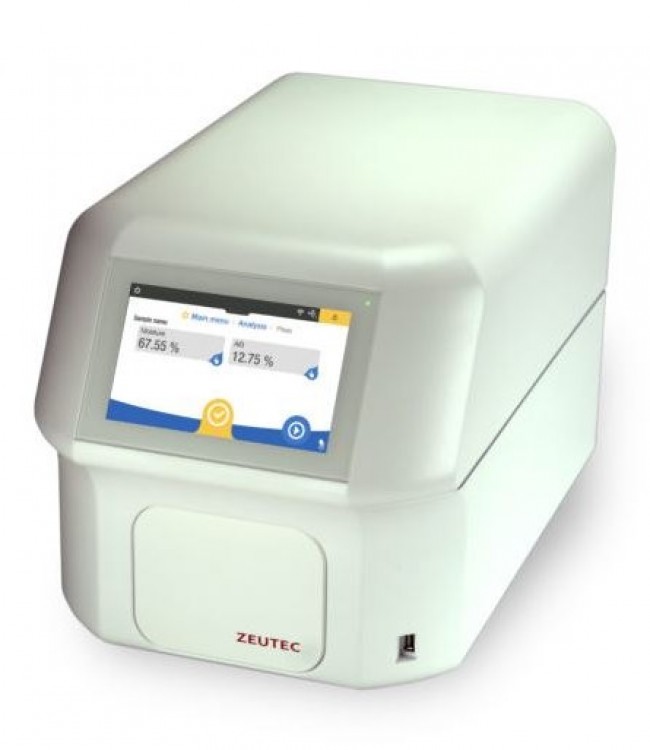

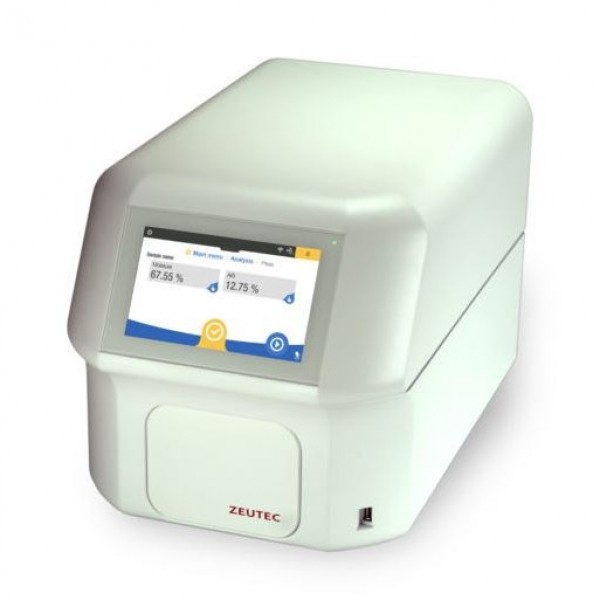

SpectraAlyzer FOOD/Gıda analizleri için

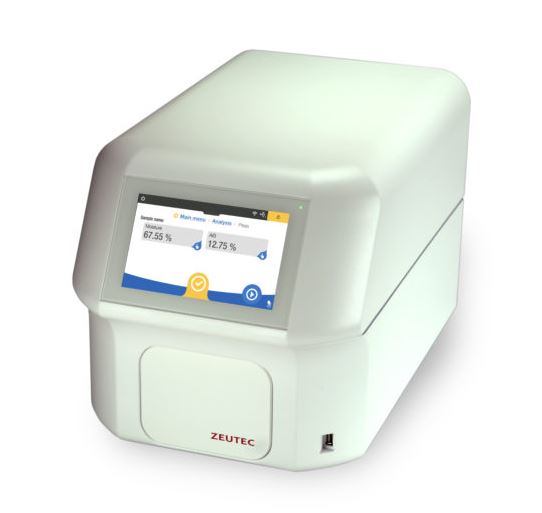

SpectraAlyzer FOOD / Gıda analizleri için

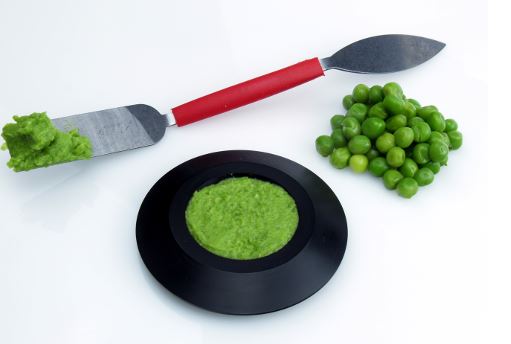

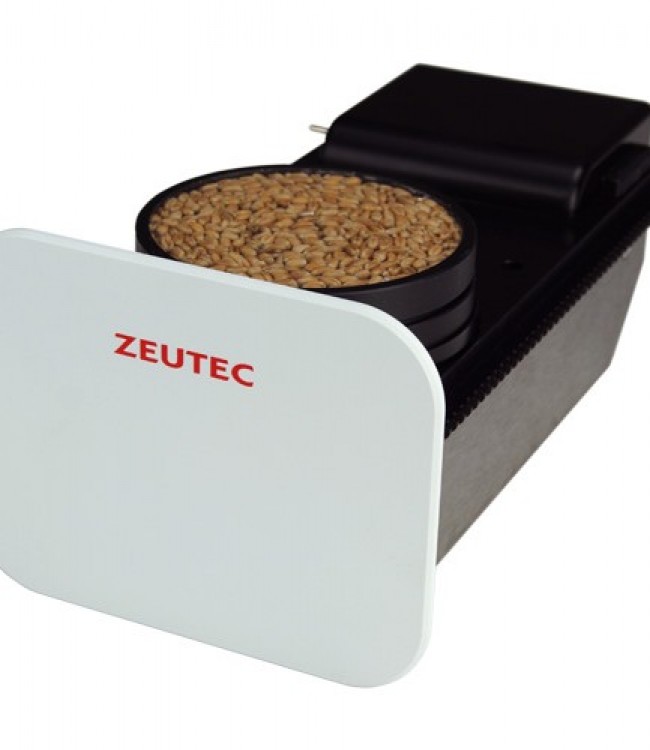

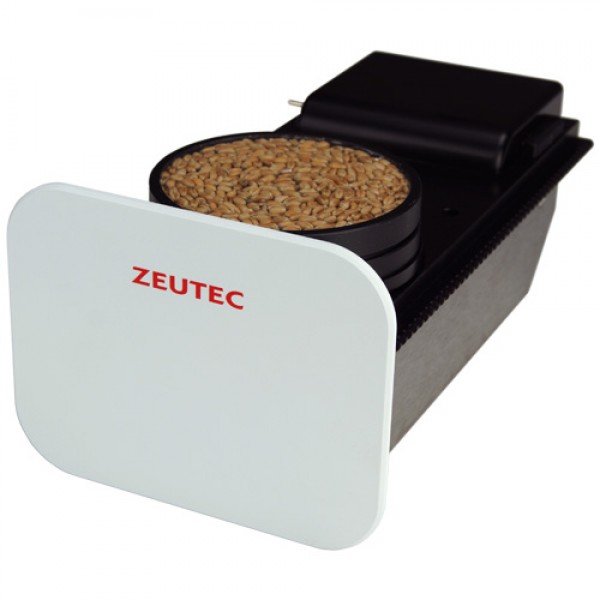

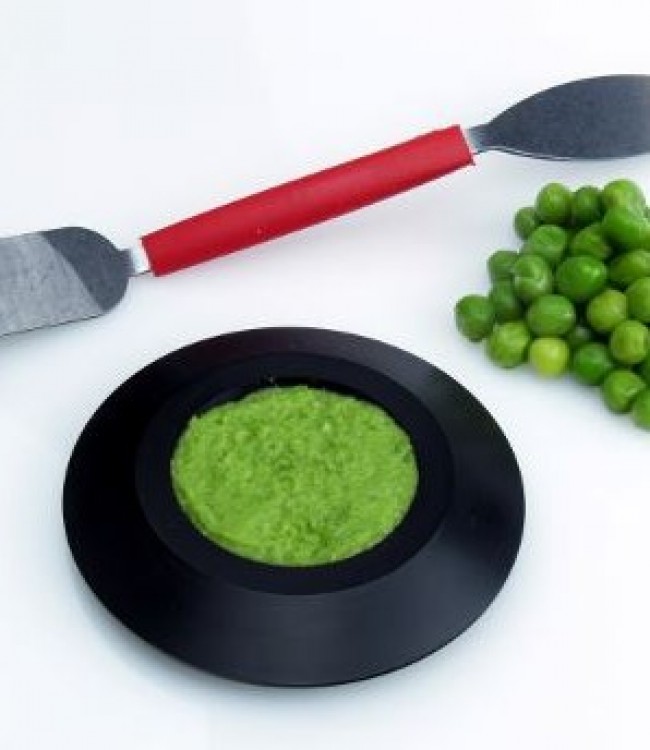

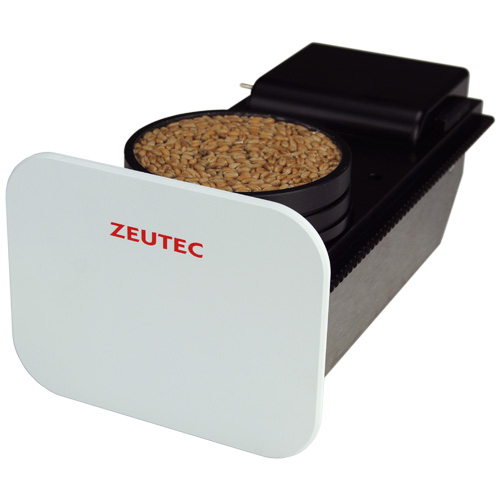

  • Versatile sample presentation

with closed, open, viscous and slide cups for powders, pastes, slurries and liquids.

  • Many mathematical models

for all kind of products included for quick calibration models installation and start

  • NIR sample / reference technology
like all SpectraAlyzer instruments for high sensitive and long term stable measurements.
  • Touch user interface
and intrinsically mounted glass touch for straight forward hygienic instrument operation.
  • Compact design
optimised for bench top or at-line application.
  • Web server connectivity
for direct instrument access via LAN and internet from anywhere, any time.
  • User friendly
           sample presentation and easy to operate.



For food products
Spectral range 800-2500 nm (optional 400 to 800nm with colour module)
Optical bandwidth < 6 nm
Dual beam system, Sample / Reference measurement
High signal to noise ratio > 150.000:1
Large expandable internal memory for calibrations, methods and history results
Graphical user interface, projected capacitive glass touch panel


Standard calibrations Included
Keyboard As optional accessory
Barcode reader As optional accessory
Printer Thermal ticket or office type printer as optional accessory
WiFi Wireless LAN as optional accessory
AWX Application worx, chemometric software package


Screen TFT 800 x 480 pixel
Power requirements min. 90 V AC (50 – 60 Hz), max. 260 V AC (50 – 60 Hz), 220VA
Operating temperature 5 °C – 40 °C non-condensing
Interfaces 1 x front USB 2.0, 3 x USB 2.0, 2 x RS232, Ethernet, Audio out
Dimensions Height: 310 mm / Width: 300 mm / Depth: 480 mm
Weight 17 kg
