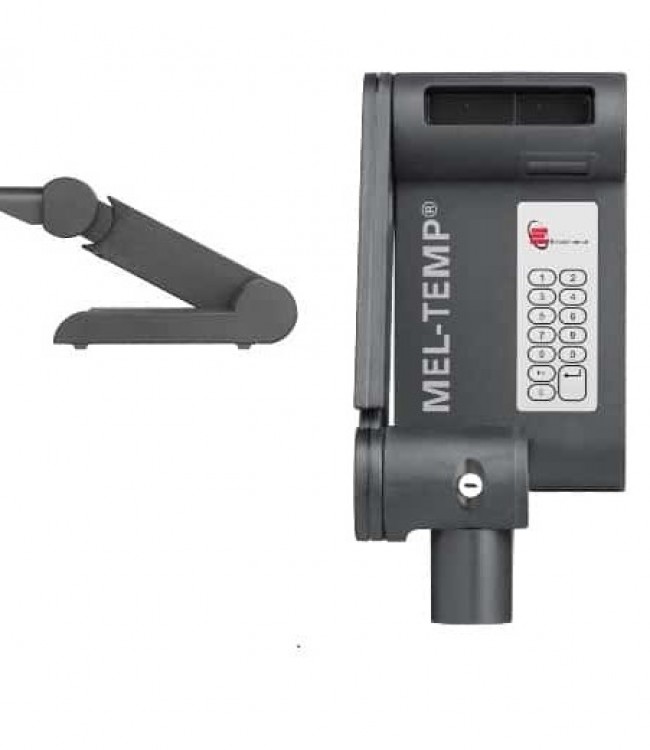

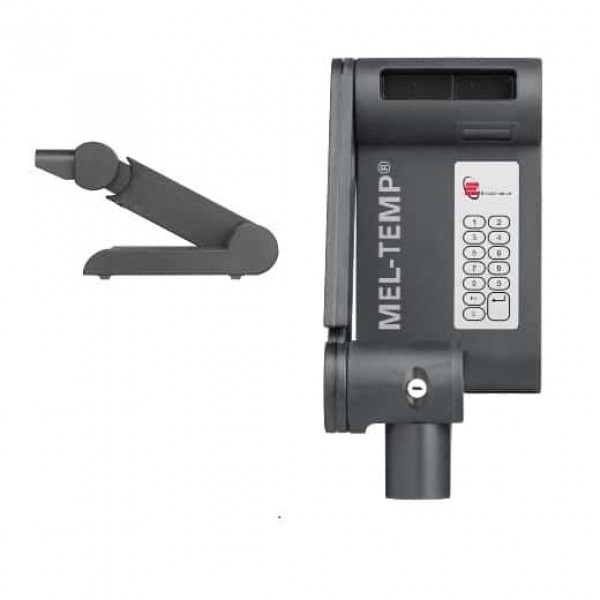

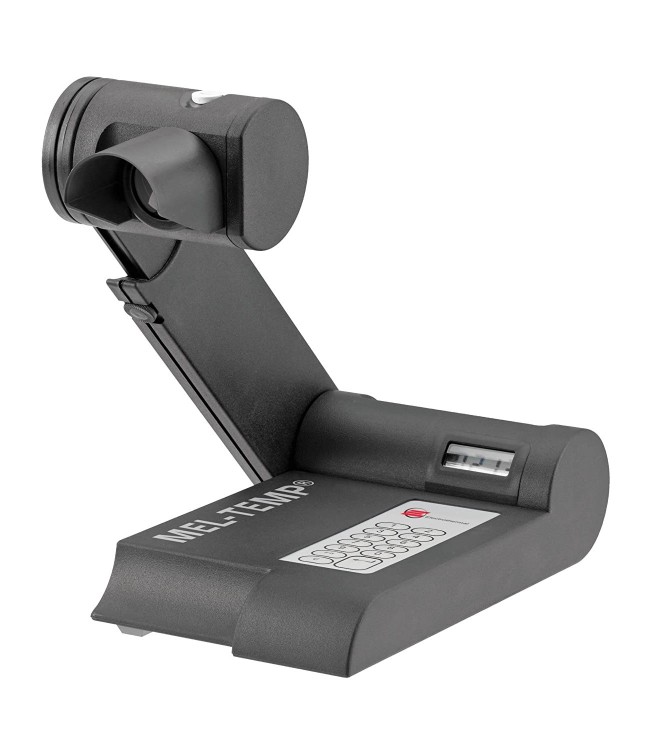

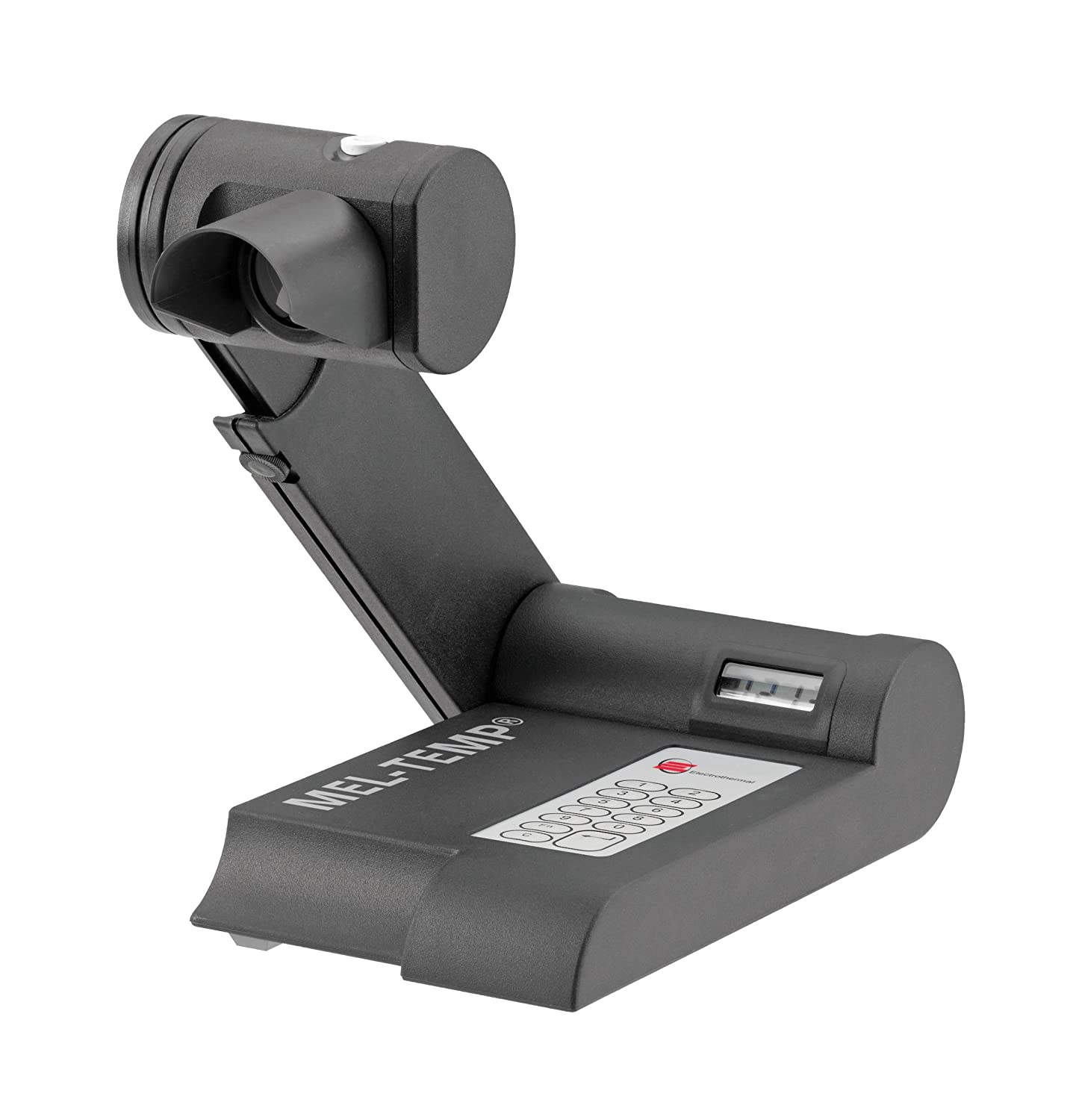

Electrothermal Mel-Temp 1101D


• Membrane keypad with simple menus for intuitive use
• Push button controls are conveniently located to ensure that temperatures can be recorded without looking away from the sample
• Digital microprocessor with ±1°C resolution provides fast warm-up and accurate temperature control
• Samples in 3 capillary tubes may be viewed simultaneously.

Safety and convenience

• 3 Audible beeps indicate that the oven temperature is stable and ready for sample
• Adjustable arm with viewing magnifier can be folded away into the unit
• Adjustable object lens for sharp focus
• Rotating viewing head and safety eye piece to protect against glare and hot zone
• Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
• Units can be calibrated by the user on their site or by the manufacturer/service organisation. If calibrated by the user, a calibration kit is required
• Improved calibration procedure using a calibration key

Technical specification


Mel-Temp® Model 1101D
Temperature range Ambient to 400°C
Fixed temperature ramp rate 1°C per minute
Fast temperature ramp rate 10°C per minute
Temperature resolution ± 1°C
Accuracy ± 1
Temperature sensor PT100 Platinum Resistance
40mm diameter removable lens 8X magnification with adjustable focus
Display 2 rows of 12 characters with backlit LCD
Colour Black
Processor 32-bit processor
Keypad 13-key membrane
Capillary tubes Accommodates 3 tubes up to 2mm OD
Tube Guide Removal for cleaning and use of cold finger
LED White LED illuminated oven
Melt memory 4 x 1 Melt memory capacity
Power requirements 100-240V, 50 / 60Hz, 15DC, 45W
Dimensions (d x w x h) 35.5 x 20 x 8cm
Weight 2.5kg
