• 7" High Definition colour touchscreen display
• Android operating system
• Features CPLive®
• Ideal for DNA, RNA and Protein measurements
• Only 0.5µl sample volume required
• Purity scan over entire wavelength range, 198 to 1000nm
• Quick and easy to clean
• Detects DNA concentrations as low as 2ng/µl
• Multiple USB ports for data storage and printer connectivity
• Multi-language options including English, French, German, Spanish and Italian
• Internal memory for methods and results (10GB onboard storage)
• 3 year warranty including Xenon lamp

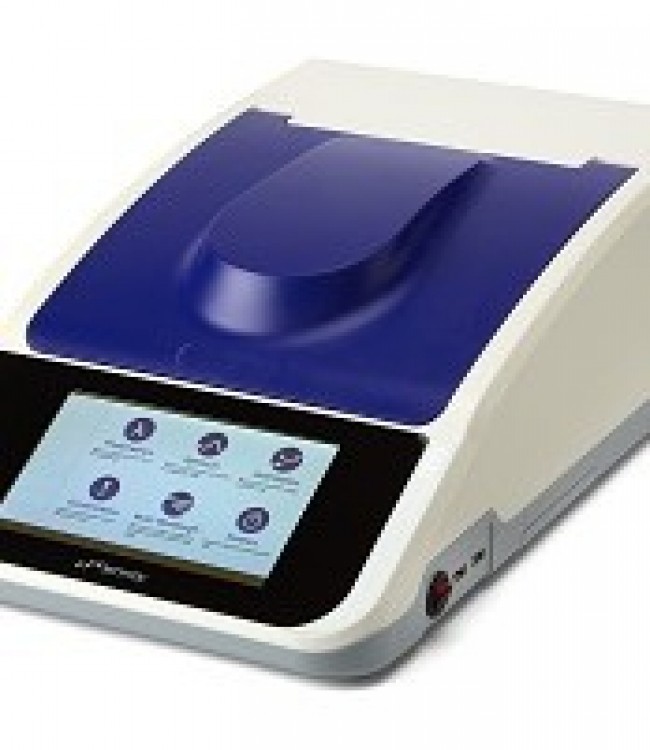

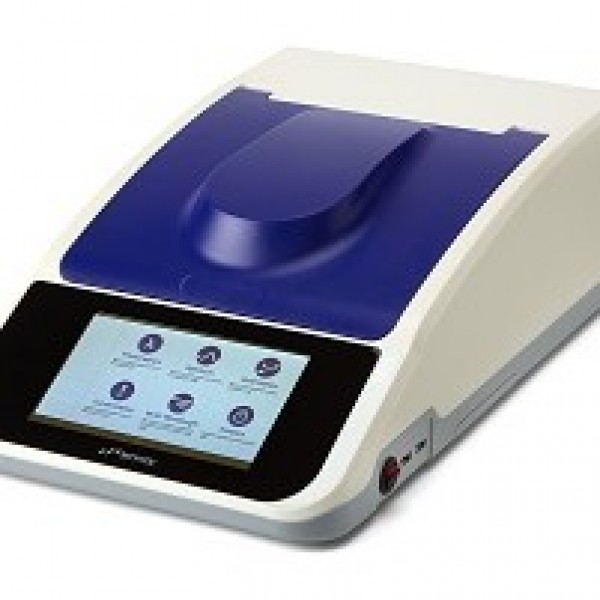

To make sample measurement even easier the 7415 Nano spectrophotometer is pre-programmed with methods for the measurement of nucleic acid concentrations and purity and protein assays.
Nucleic Acid Determination Mode
The 7415 Nano is pre-programmed with methods for the measurement of ssDNA, dsDNA, RNA and oligonucleotide concentrations using wavelengths recorded at 260, 280 and 230nm, with an optional correction at 320nm. This measurement mode has the 260/280 and 260/230 ratios pre-programmed as well as a variable ratio option which enables up to 3 wavelengths to be entered as well as the correction wavelength.
Protein Assay Determination Mode
For measuring protein concentrations, the 7415 Nano is pre-programmed with methods for Bradford, Lowry, Biuret, Bicinchoninic Acid (BCA) and Direct UV assays. This measurement mode allows up to 20 standards, with 5 replicates of each standard, to be measured to create the standard curve. The replicate measurements can be set to automatically perform 3 readings one after the other on the same sample; or the replicates can be set to enable one measurement to be performed on three separate samples of the same concentration.
Purity Scan Measurement Mode
This measurement mode is used to check the purity of nucleic acids. This is especially useful for RNA samples where impurities may be present at 230nm but cannot be detected using the 260/280 ratio measurement. The 7415 Nano enables scanning across the full wavelength range from 198 to 1000nm to identify any distorted peaks.
The 7415 Nano is fitted with a micro-volume accessory which allows samples as small as 0.5µl to be pipetted directly onto the read head, removing the need for cuvettes and conserving precious samples. This makes it ideal for nucleic acid researchers where sample availability may be limited; the perfect analysis tool to measure the purity and concentration of biological samples.
The 74 series spectrophotometers have a custom designed user interface which is based on an Android platform, making it easy to navigate and control the instrument. The home screen gives quick access to the different measurement modes as well as shortcuts to favourites and previously saved methods and results.

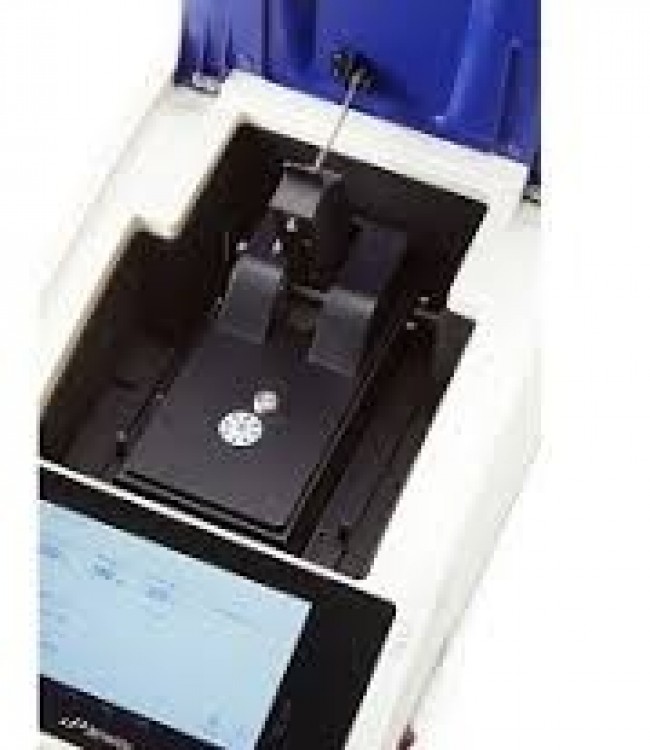

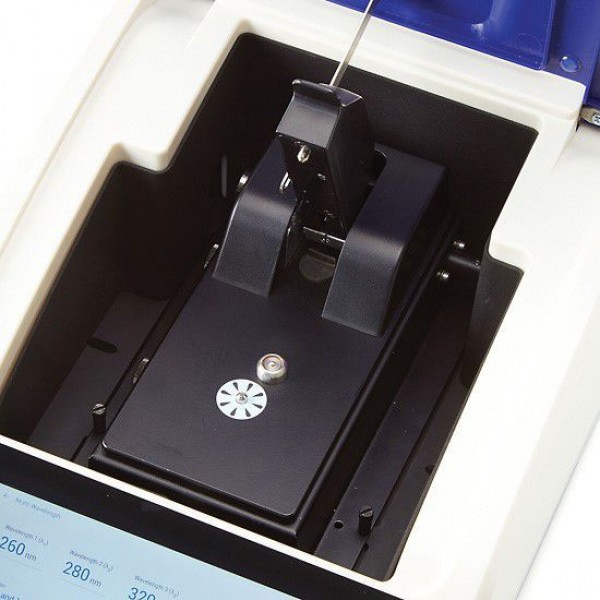

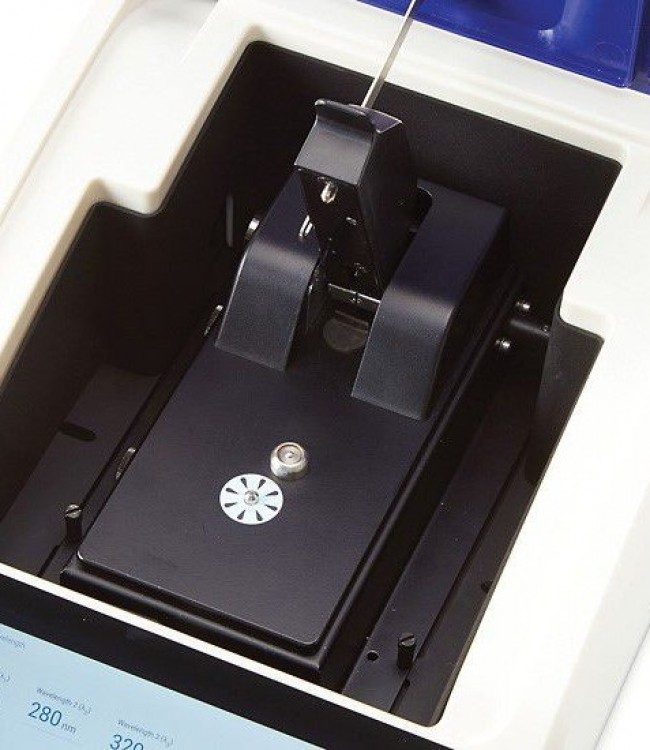

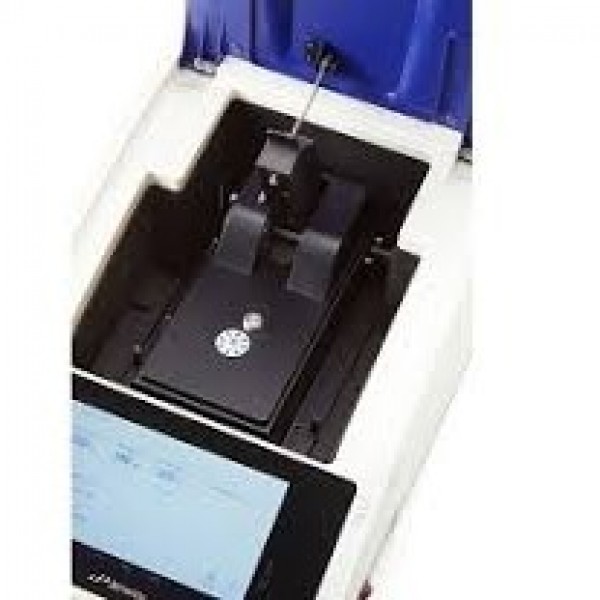

Simply pipetting directly onto the read head makes sample measurement, quicker and requires much less effort, eliminating the need for both sample dilutions and cuvettes. The stainless steel read head which consists of a chemically inert embedded quartz lens, utilises the natural surface tension of the droplet to form the bond between the read head surfaces. After measurement the sample can be easily removed by pipetting or wiping away with a micro-fibre cloth.
The 7415 Nano can automatically take readings at the optimal path length (either 0.2 or 0.5mm). It performs sample measurements in less than 6.5 seconds.

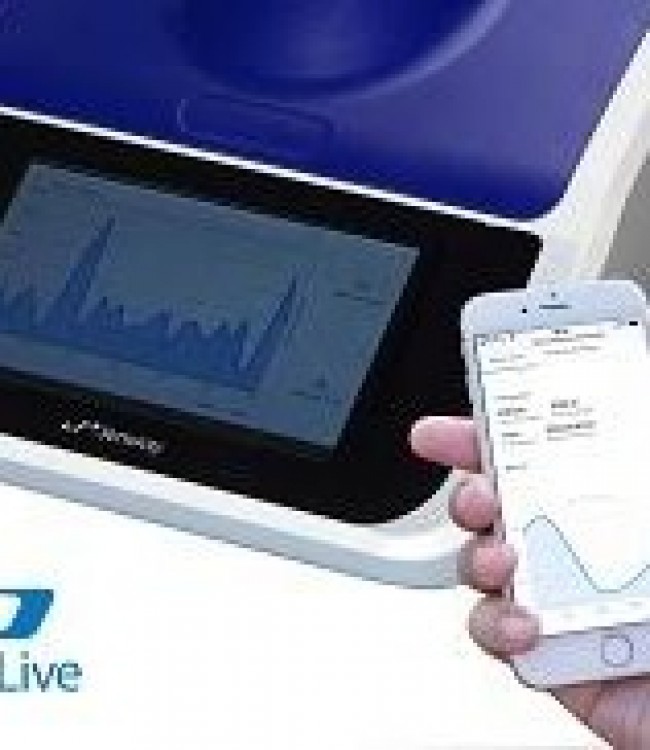

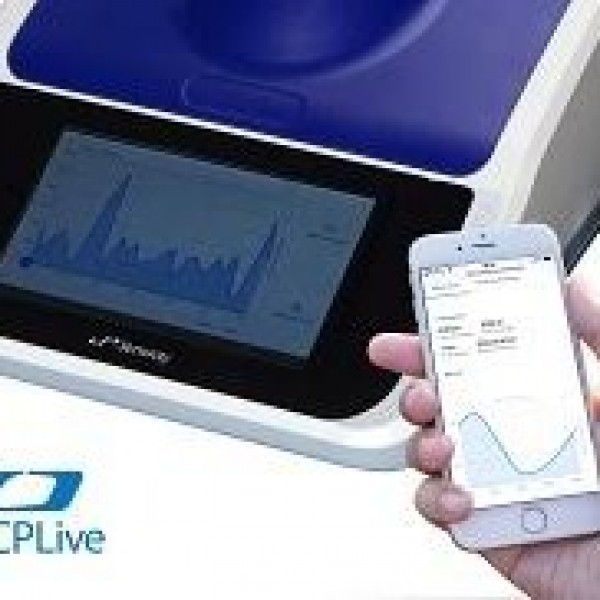

The 7415 Nano has been designed with excellent connectivity in mind. The easy access USB ports on the front of the instrument can be used for software updates, data storage and printer connectivity. Results and methods can be stored as CSV files for easy transfer to Microsoft Excel®. With the optional CPLive connectivity protocols and results can be automatically uploaded and stored effortlessly and securely in the cloud. Connect with your personal secured login and password and share your results with colleagues from around the world may you want to.
|Outputs||USB Type A x 2, USB Type B x 1, Ethernet connection (RJ45)|
|Supply VoltageFrequency||100 - 240VAC at 50 to 60Hz|
|Power Supply||24V DC, 2.5A|
|Dimensions (w x d x h)||280 x 500 x 156mm|
|Warranty||3 years (including xenon lamp)|
